Product Overview

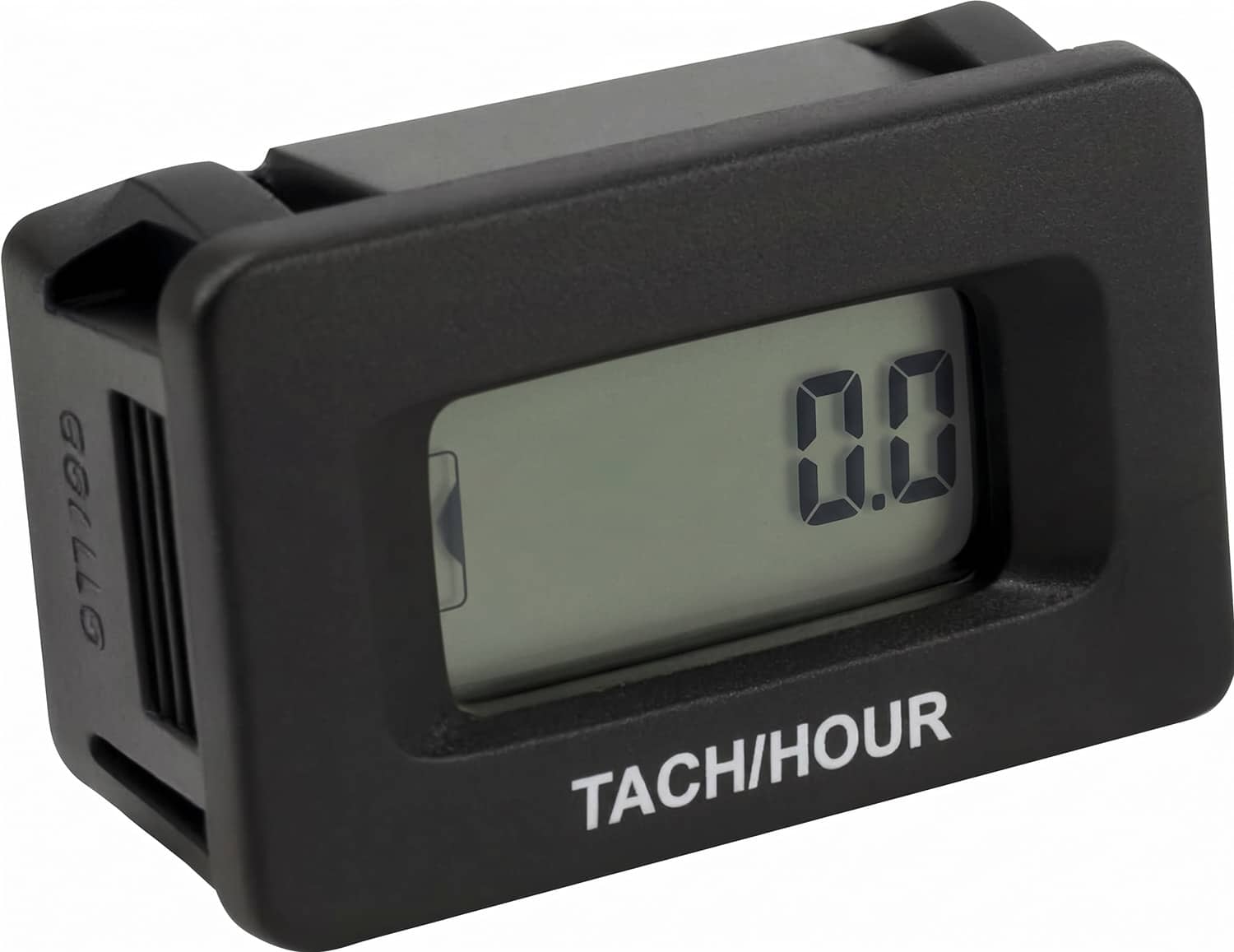

Upgrade your equipment maintenance with the Hardline Products® Digital Hour/Tach Meter, the genuine OEM choice for top manufacturers including Toro, MTD, Cub Cadet, Bad Boy, Troy-Bilt, and Briggs & Stratton.
Designed, assembled, and tested in the USA, this industrial-grade inductive meter provides the critical data needed to maintain peak engine performance. By accurately tracking RPMs and total running time, you can precisely schedule oil changes, valve adjustments, and spark plug replacements—extending the lifespan of your expensive machinery.

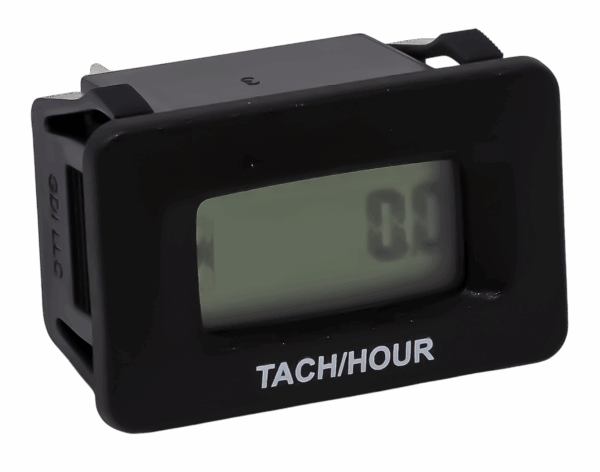

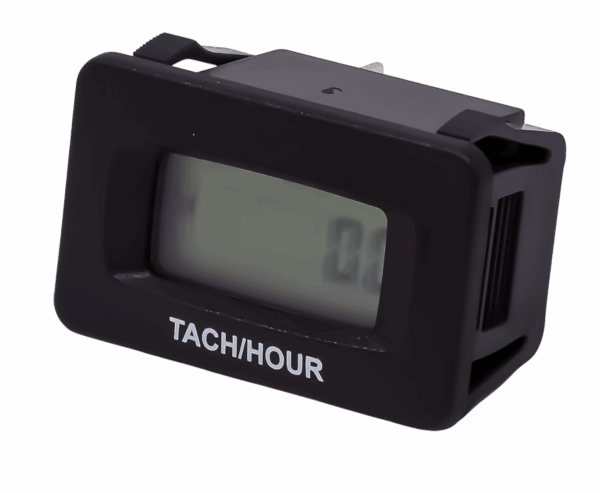

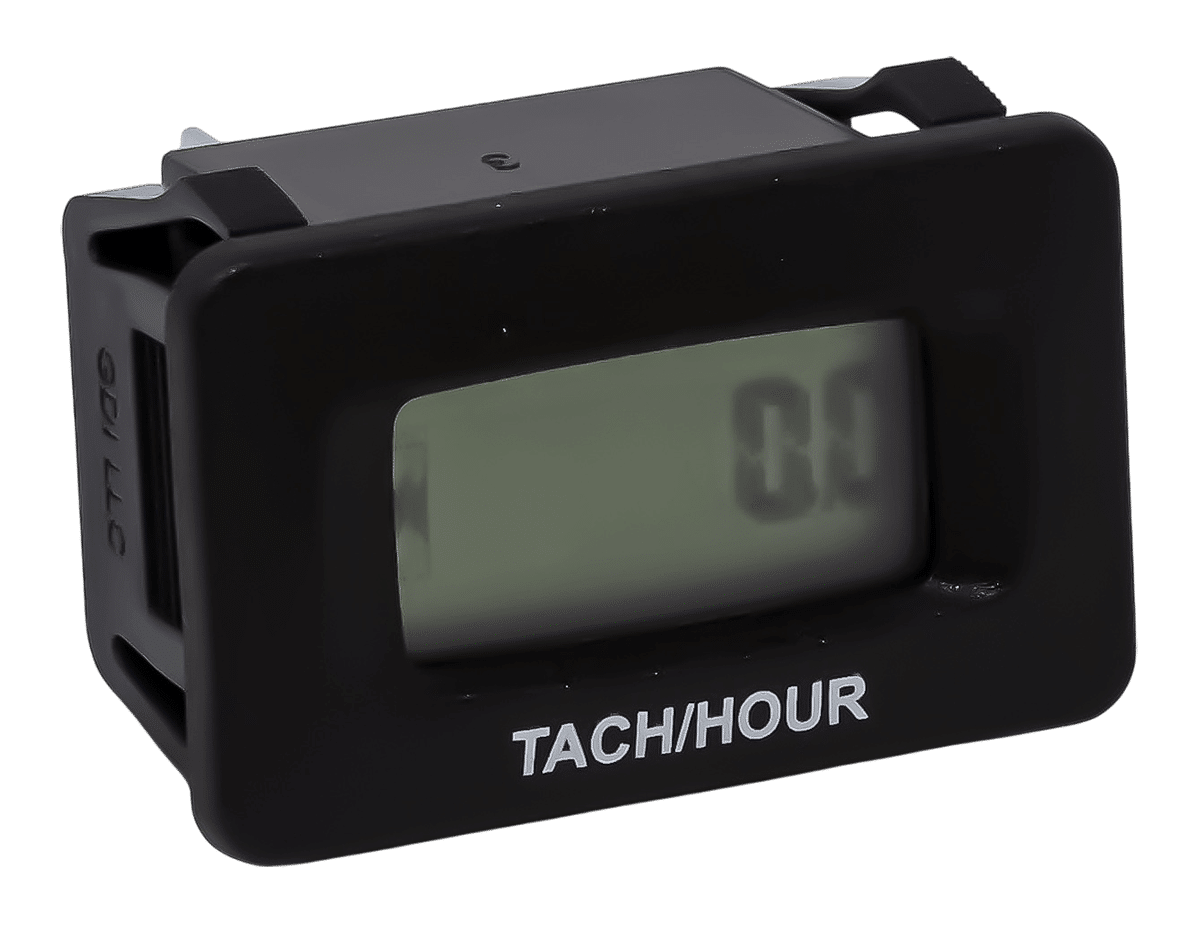

Unlike mechanical meters that click and wear out, this solid-state digital unit features a modern LCD and fully encapsulated epoxy construction, ensuring vibration resistance and complete waterproofing (IP-68 rated) for the harshest outdoor environments.
Key Features & Benefits
- Genuine OEM Quality: This is the exact GDI/Sendec meter originally installed by manufacturers, not a cheap aftermarket imitation.
- Dual Functionality:
- Tachometer: Displays real-time engine RPM (up to 15,999 RPM) while the engine is running.
- Hour Meter: Automatically switches to display total accumulated runtime (up to 9,999.9 hours) when the engine is off.
- Extreme Durability: 100% epoxy-encapsulated case makes the unit fully waterproof, shockproof, and resistant to the elements.
- Always-On Display: The high-contrast LCD screen is readable whether the engine is on or off, with no external power required.
- Long-Life Battery: Features an internal battery with an impressive 12-15 year lifespan.
- Visual Indicators: A flashing hourglass icon provides visual confirmation that the meter is actively counting time.

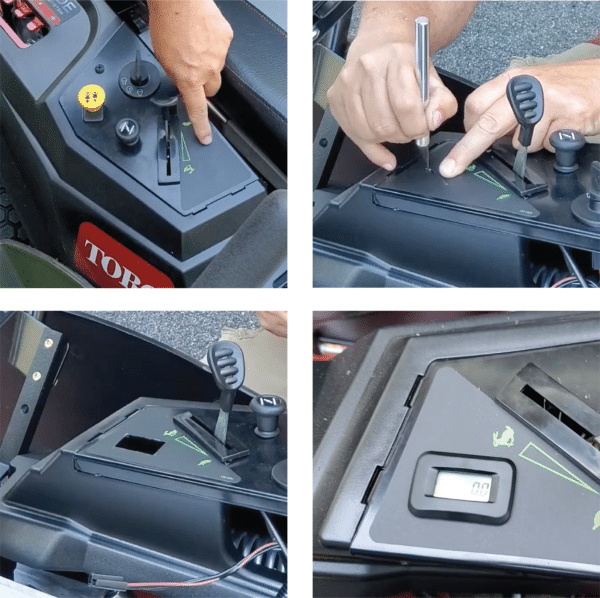

Seamless Installation
Many mowers come pre-wired for this exact meter, even if the dealer did not install it.
- Plug-and-Play: Simply locate the pre-installed wiring behind your dashboard decal.
- Easy Mounting: Cut the decal over the dashboard panel slot, snap the meter into place with the built-in spring-loaded clips, and push-connect the wiring.

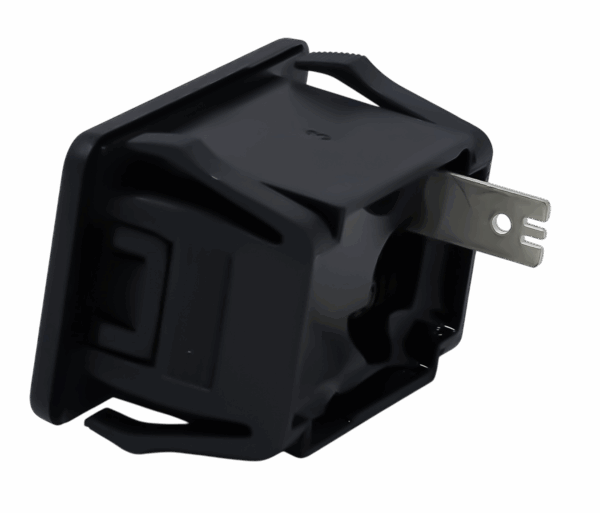

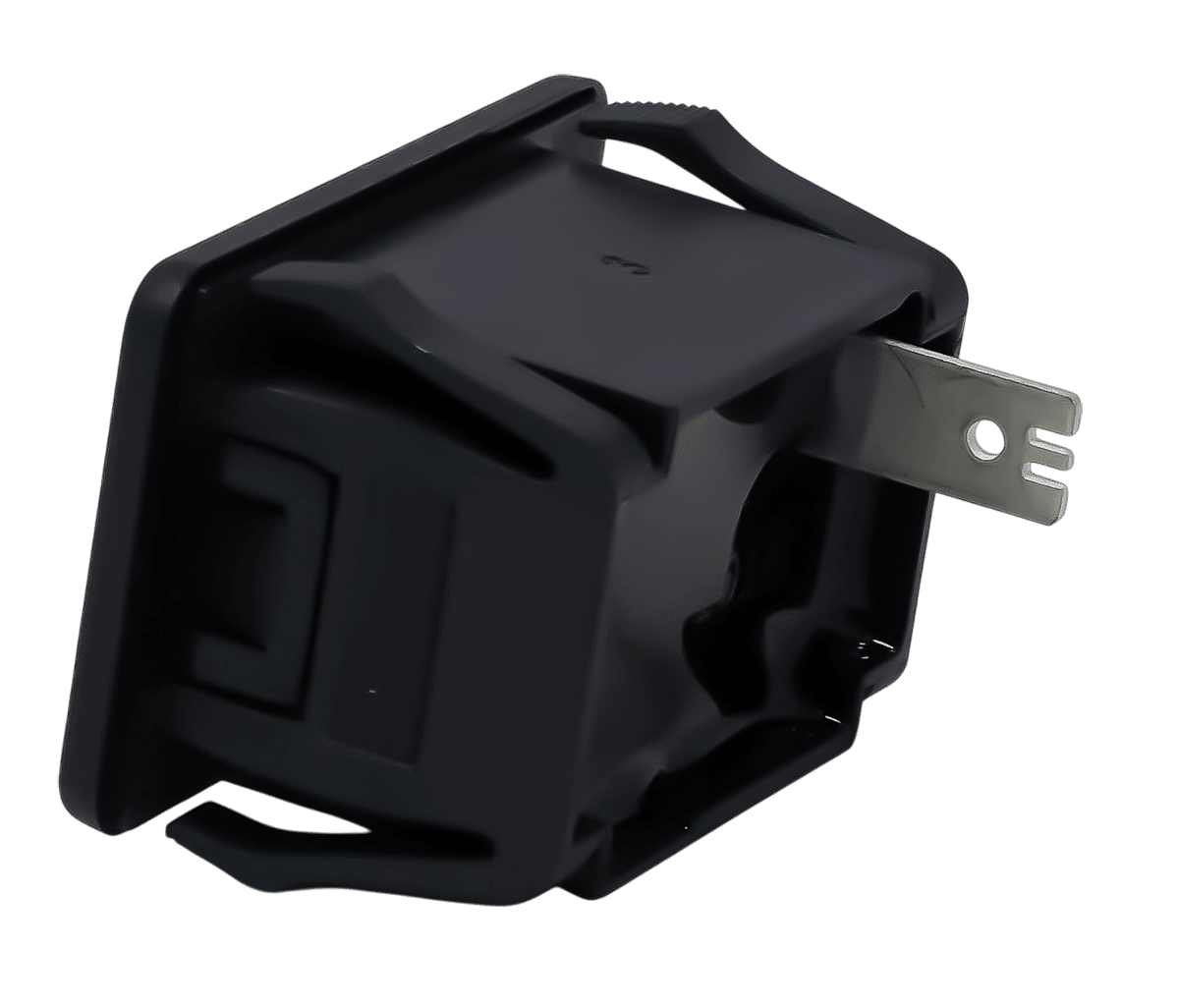

- Universal Fit: Can also be installed on non-wired units using the included single-wire connection (Inductive pickup).
Compatibility
Replaces the following OEM Part Numbers:
- MTD / Cub Cadet / Troy-Bilt: 725-05438
- Toro: 148-1063
- Bad Boy: 083-4013-00
- Briggs & Stratton: 5106789
Fits Specific Models:
- PRO Series: PRO HW (300 336/348/354), PRO Z 500/700/900 Series (KW 554/560/760/772/960/972), PRO X 600 Series.
- Tank Series: LZ48, LZ54, LZ60, SZ48, SZ54, SZ60.
Technical Specifications
- RPM Capacity: Up to 15,999 RPM (1% resolution)
- Hour Capacity: Up to 9,999.9 hours
- Resolution: 0.1 hours (6 minutes)
- Input Options: DCV, ACV, Ignition

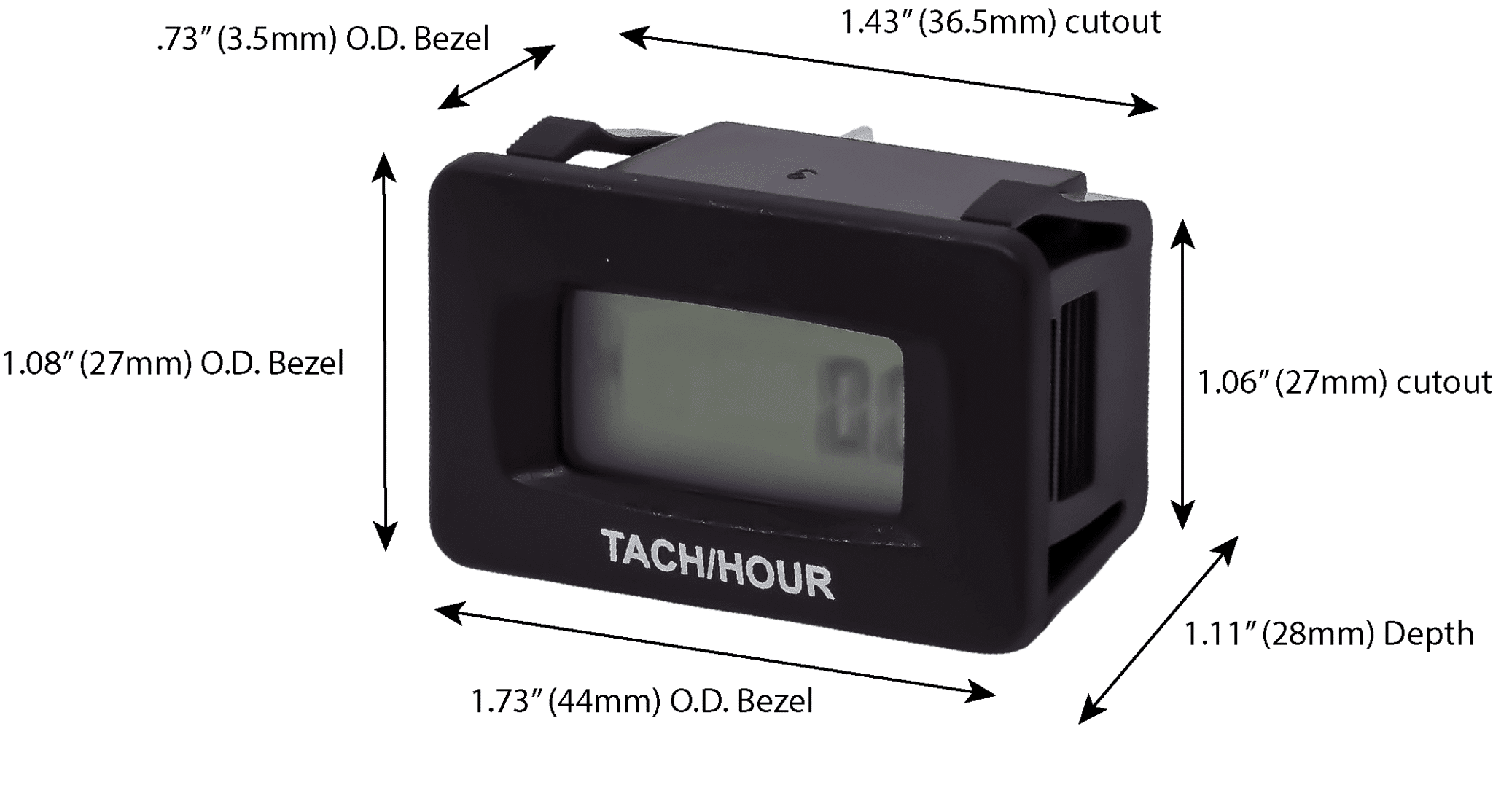

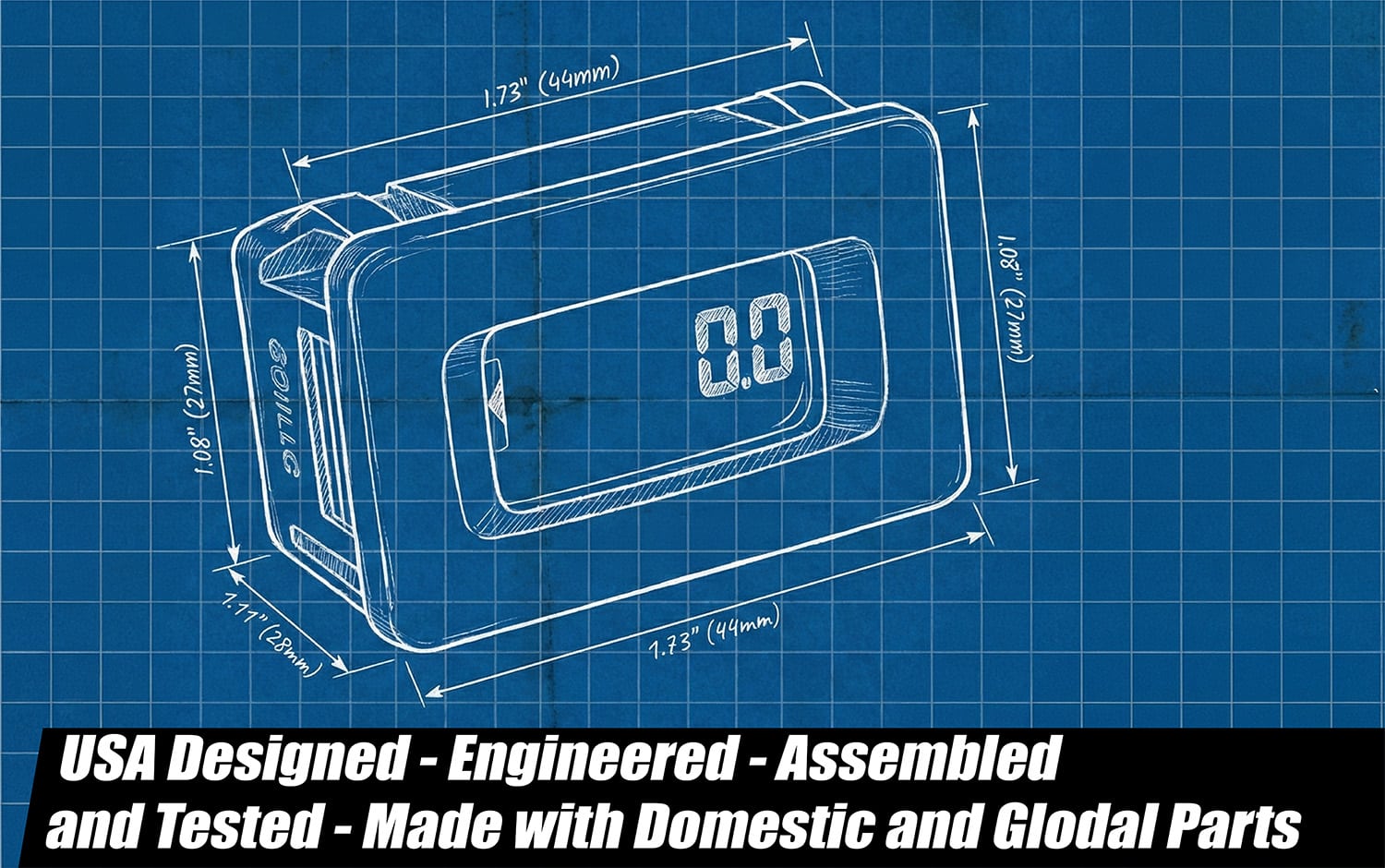

- Dimensions: 1.74″ (L) x 1.08″ (W) x 1.11″ (H) (44mm x 27mm x 28mm)

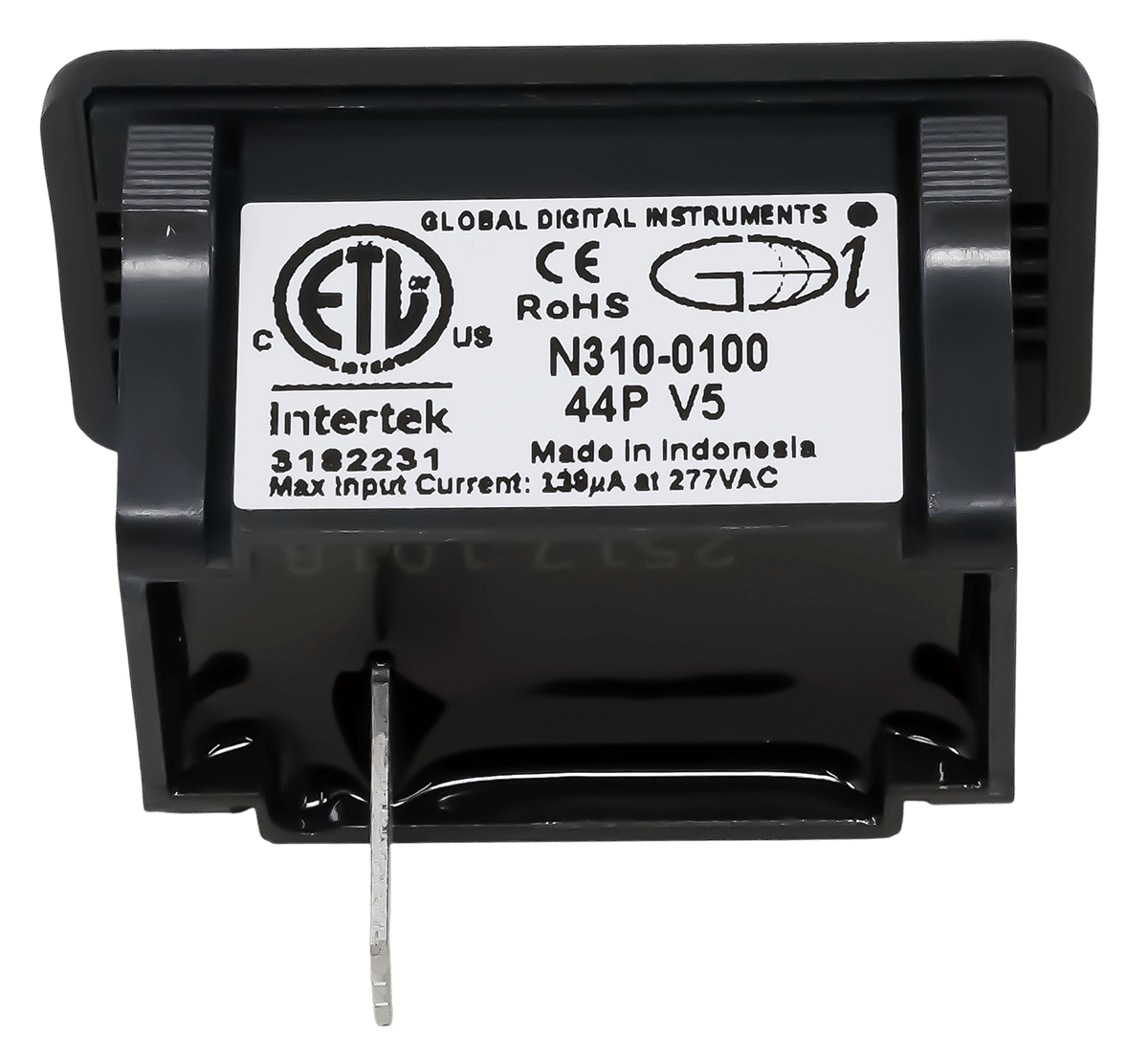

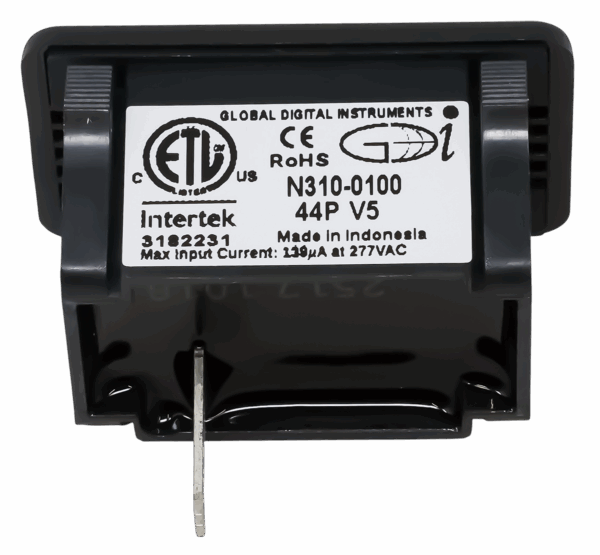

- Certifications: CE, ETL, Intertek Certified
- Warranty: 1 Year

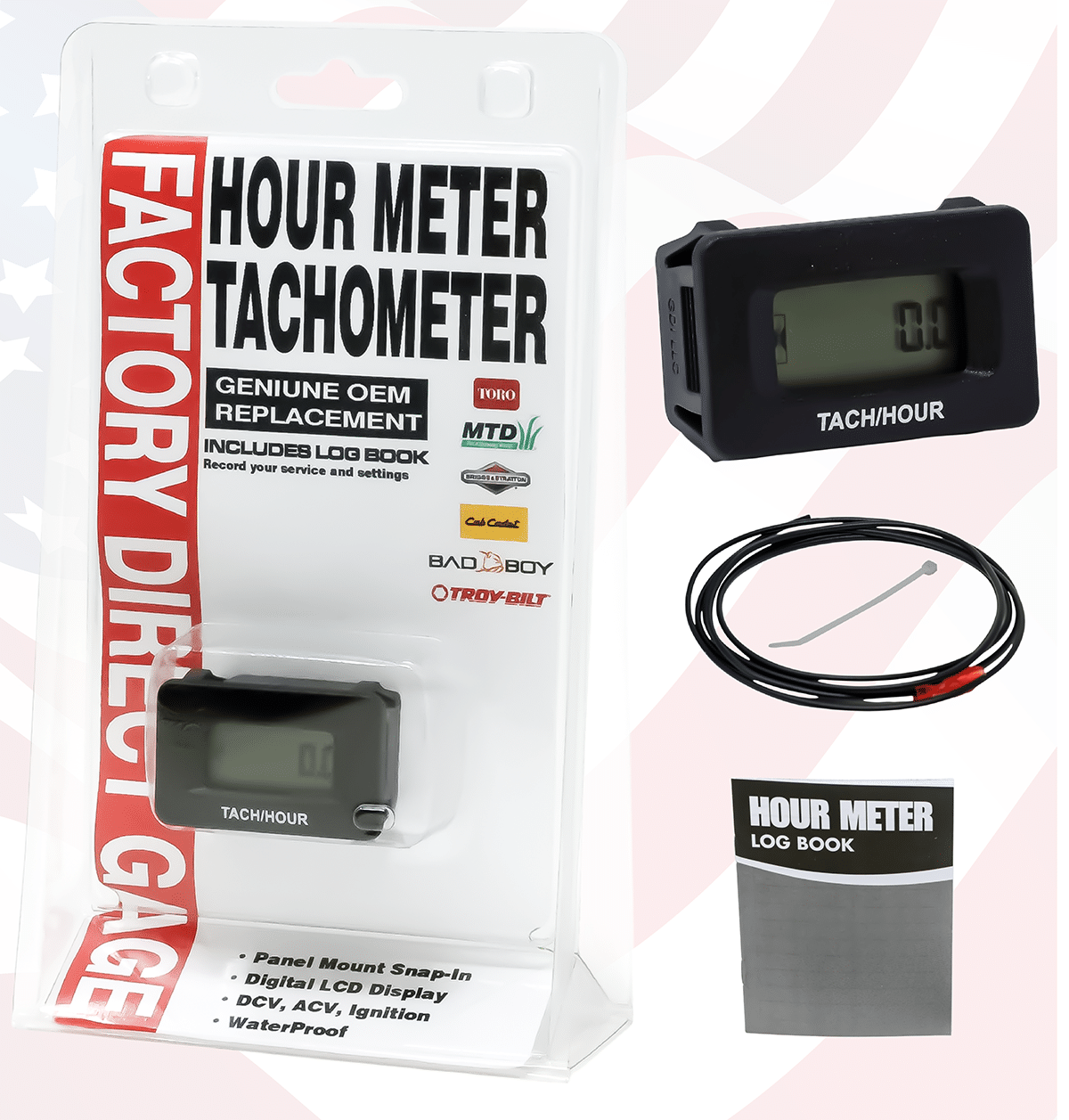

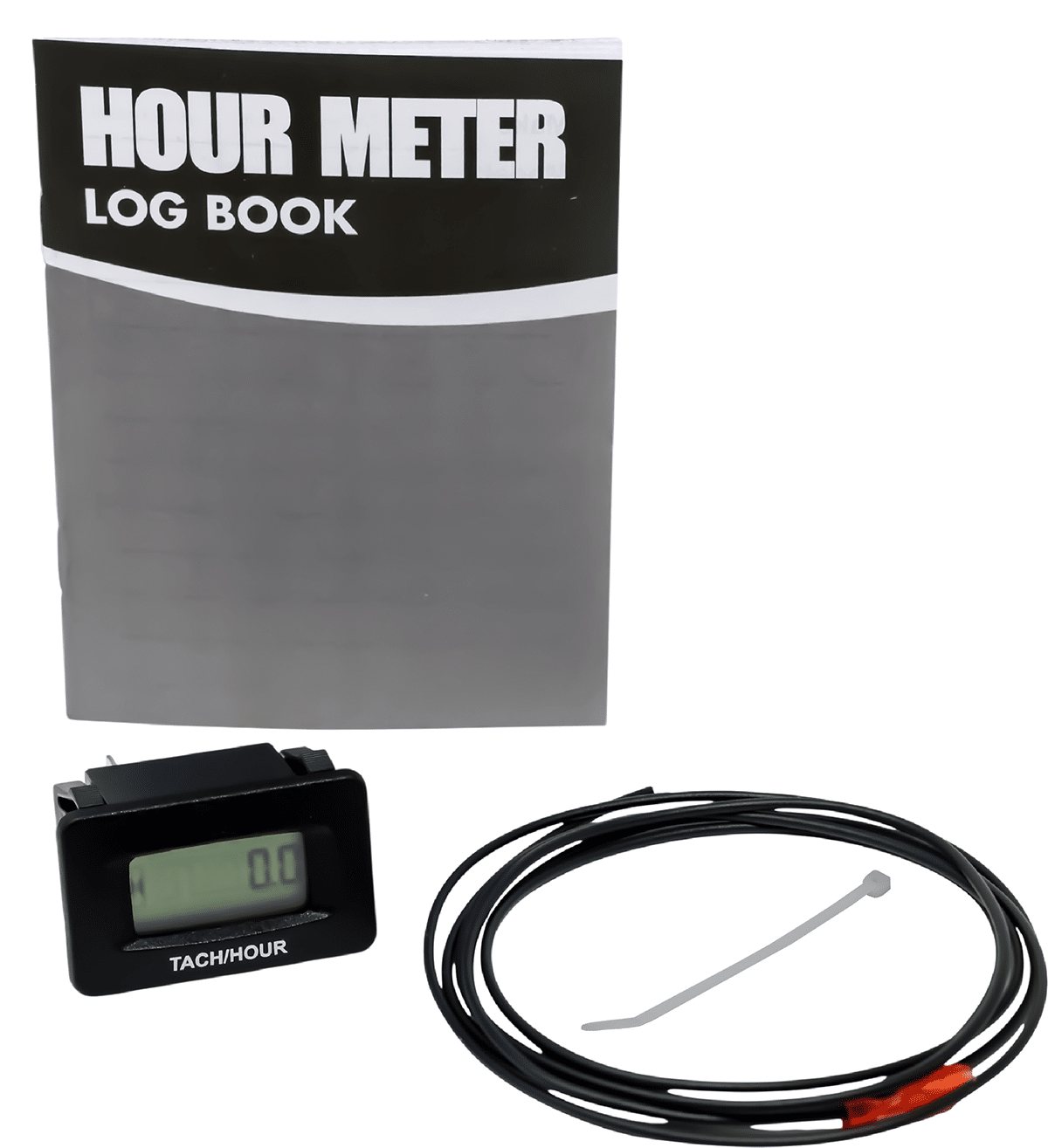

What’s in the Box?
- 1 x Digital Hour/Tach Meter
- 72″ Pickup Wire & Wire Tie
- Maintenance Log Book

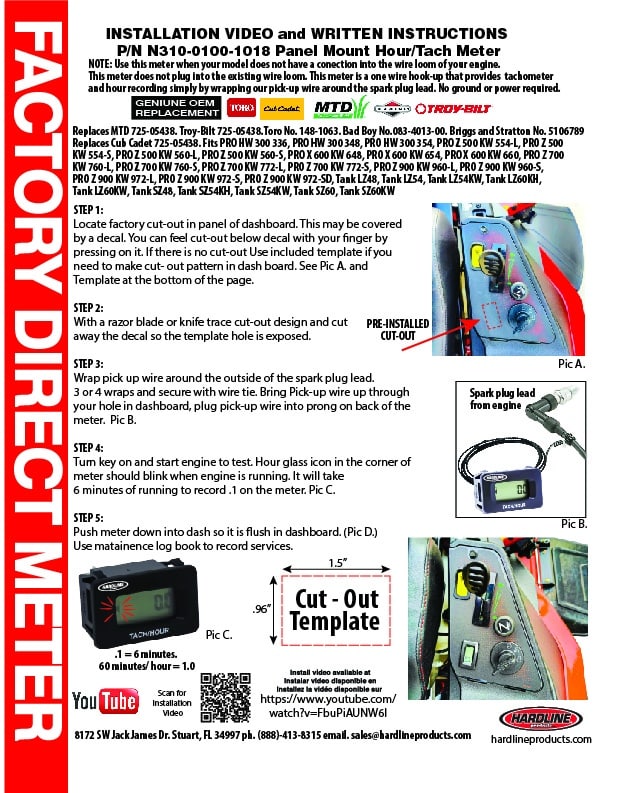

- Instructional Guide

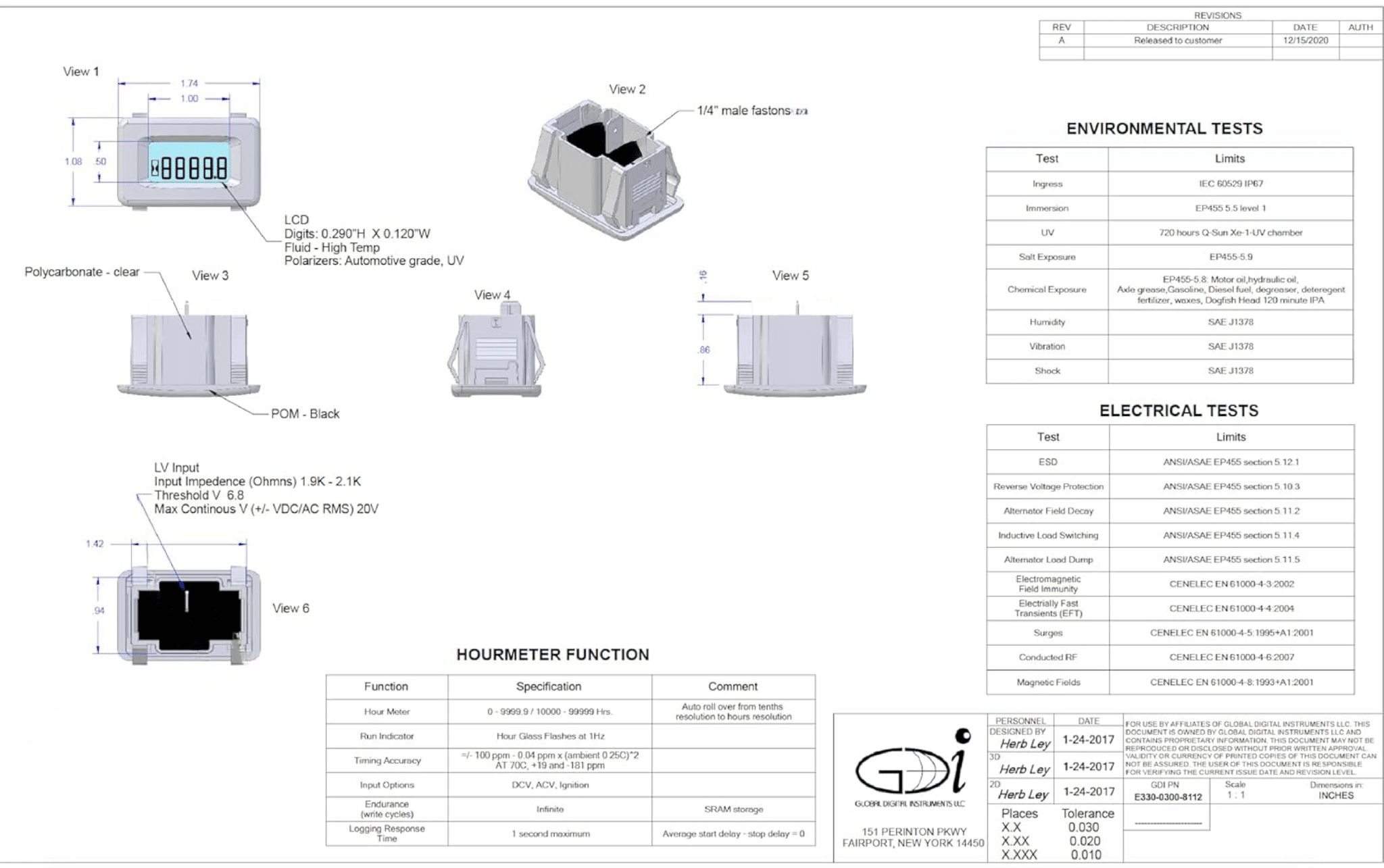

Download Specification Sheet Here!
Download Function/Test Sheet Here!
Download Digital Log Book for Droids!
How to Video Install
UPC:632194729957
B0F84KRVDF
